Victorian Side Return Extension - Plan Dilemma

5 years ago

Hi,

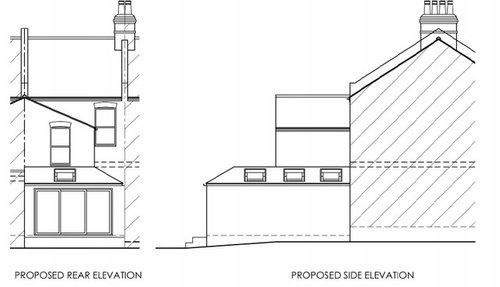

We're shortly undertaking a standard side return extension on our 2 bed Victorian terrace. We're trying to decide how many windows we need. The draft plans have 4 roughly 1mx1m velux, 3 on the side and 1 on the rear slope. But we do have the option to add another velux to the rear slope for £700. I am wondering is it's needed? FWIW the new kitchen will be 6.4m long and 4.6m wide with 3.5m bifolds out onto a north east facing garden

We're also wondering how to finish the middle living room. Ideally we'd close off where the window currently sits on the side return completely as it gives us all that corner wall space but would it be too dark?

Any input would be greatly appreciated. Perhaps others have undertaken similar project on here

Sort by:Oldest

Comments (4)

minipie
5 years ago
As you are NE facIng I think it’s worth the extra velux as you’ll get a lot more light. Also for some reason one on its own doesn’t look quite right proportion wise. As an alternative you could consider swapping to larger rectangular rather than square veluxes, you might be able to get away with two on the side and one on the end. The cost of installation is usually per velux so may even save money this way.

As regards the side return opening to the central room, I would say you need at least a window there at least. If you have an internal window (rather than door) there is still space for furniture under the window. Without a window that room is usually too dark. Having said that, I notice your two receptions are open plan and the front window is SW facing, so perhaps the central room gets enough light that way. But personally I’d still keep a window in that location for extra light and in case you ever want to separate the two receptions.

You could even consider a transom window high up on the wall, that will let through lots of light as the light comes from the nearest velux anyway, but leaves plenty of room for furniture underneath. Could look a bit odd with a period look but would work with modern decor.
rinked
5 years ago
To answer one of your questions: No extra velux there, not that size, proportions are off (between the big doors and the window on the second floor).
Related Discussions
Victorian Terrace Side Return Extension/bathroom location dilemma!
Q
Comments (2)
A bathroom at the front may not be completely out of the question. We have previously installed a bathroom and en-suite back-to-back with the latter to the front of a Victorian mid-terrace. The soil pipe ran horizontally down in the middle of the house (where wears added a downstairs WC beneath the stairs), and ran beneath the suspended timber floor (with the correct fall) on the ground floor to the drains at the rear of the property. Without knowing more details it is difficult to say for certain whether it would work, but it is possibly worth exploring.
...See More
Side return extension with side access dilemma
Q
Comments (7)
Hello James, Just a thought here and a very quick one!... If you have a galley arrangement you don't cut the room in half. You could then have a different kind of island/eating area. I love the island that morphs into dining if there is not a degree of separation to have two separate entities.. . The room spatially will feel more open, but of course it must be something you're happy with. For the seating area consider a chaise longue as if two don't sit, one can recline and gaze into the garden! If you were to make the side return ie follow along from the external wall (Living room) you could move the kitchen back in line with this. It's not a massive extension possibly 70 or 80 wide ie the doorway width approx.. It allows the access way to be left alone and thus you can still walk down past your kitchen.. There's no courtyard but you have a better flow through from front to back.. It's simpler perhaps but sometimes this is the best solution to a problem.. The living room could possibly have the angled wall removed to open up the living and kitchen area.. RSJ or some structural addition if the wall is load bearing and you'd need consent most probably.. Structural engineers, but the architect can advise you.. if you liked the idea.. It means you lose the door to the alleyway from the living room but I don't feel this is a gr8 loss.... You could move (or rather extend backwards to the new rear wall) the loo to my suggested new "rear" wall position boxed in from either side of course and with pocket doors and a small (read tiny) cloakroom in front accessed from hall side... so the door isn't opening directly into hall/kitchen/living but has two doors. So the end of the living room is squared off and forms one side of the new loo position. It's a minimal move. You increase the flow through from the living room by opening this out more and even a smaller amount would benefit. and then you can start the run (Kitchen) from back of downstairs loo with larder cupboard for example so there is again a degree of separation from downstairs loo and what is going to be kitchen units.. I also like to plan large monoliths like double height fridge freezers or larders in corners, which doesn't impede the view! Sliding or concertina doors at the back or my specific favourite .... Bring the outdoors in and visa vera! It's rather a more simplified design but I think it creates flow which I like the idea of in a home such as yours. You could put in wooden french doors if you wanted to separate front living from rear living but still keep them with the aesthetic feel of one room.. Don't lose the fireplaces if they're lovely they might be worth keeping! The other alternative is to square off the loo, do the small side extension as mentioned above and then you have two walk ways into kitchen from hall side and from kitchen side.. Then you'd have the FF or larder in the middle on the Loo wall .. This arrangement isn't open like my first idea.. but it would save you moving the loo in question.. : )) These are on a huge scale I know but they're to give you some inspiration about how to handle the door from kitchen to garden! Think garage style pulley system.. This kind of solution makes for a spectacular entrance to your garden and beyond!
...See More
Victorian House Side Return Extention
Q
Comments (16)
Hi Victoria, I don't have any plans to show you, but some construction photos of our side extension - I think we have the same layout as you, but in the mirror :)). We extended our kitchen 4 years ago, unfortunately I'm not able to tell you how much it cost as we'd had a complete house renovation and paid it all as a pack. However, the structural beams and glazing in the kitchen were billed separately; main beam was about £3000, the glass (including folding doors) was £15000. I remember we also asked for a quote for a roof with 3 or 4 skylights, builder said he'd do it for £9000 at the time (we live in Cardiff). We had the same problem, wanting to maximize the use of space and get as much natural light as possible. We decided NOT to have two access points to the kitchen, but close off the middle room double door and have an internal window instead. Our thinking was that, if we keep a door there, the space is lost, as it needs to be 'free of stuff' for access :)) especially because, as with your house, we have a loo in between and the back length of that loo can't be anything but a corridor (aka dead space). By closing it, we gained a fully usable middle room and a somewhat closed corner in the kitchen, ideal for bins, feeding the cats, dumping hoover/ bikes out the way, etc. I hope I make sense (I'm a bit tired and my English seams to fail me at such times... :)) You can even have it as a play corner... There are lots of examples on Houzz for side extensions, just search http://www.houzz.co.uk/ideabooks/query/side-extension and browse the results. I'd be happy to share my experience if you need more details, just let me know. Good luck!
...See More
Side return extension on Victorian terrace.
Q
Comments (5)
By using glass in the lowered part and putting the kitchen units in the lowest part you should be ok although 2.3 seems very low in my experience even for a conservation area - it is normally 2.5 on boundary walls. The only way round is if your neighbour were also interested in doing a side extension you could put in a joint application to have a higher side wall. I have done this once and it worked.
...See More
Martin
Original Author
5 years ago
Many thanks for taking the time to reply. @minipie i'll investigate the larger velux, does seem there's larger rectangular ones which might be the solution

@rinq can you say why you think the proportions are off? The plans show the window won't be centred to the one above so i'm not sure how having an extra one would throw it off exactly?

I find it hard to visualise and some pictures look fine with one at the end, some look dark. Some don't have any on the rear slope.
rinked
5 years ago
It's both the size and the placement that wouldn't work for me. Personally I'd skip the outer two and put a rooflight in the flat part of the roof. And keep the old living room window opening, but remove the glass and frame if there's no door between kitchen and living either. And keep it about 105cm from the kitchen floor and 40cm from the exterior wall, so there won't be any trouble with future furniture placement on both sides. Hope my explanation sounds as logic to you as is does to me ;)
