Advice on floor plan - how to create a 3rd bedroom?

5 years ago

Hi,

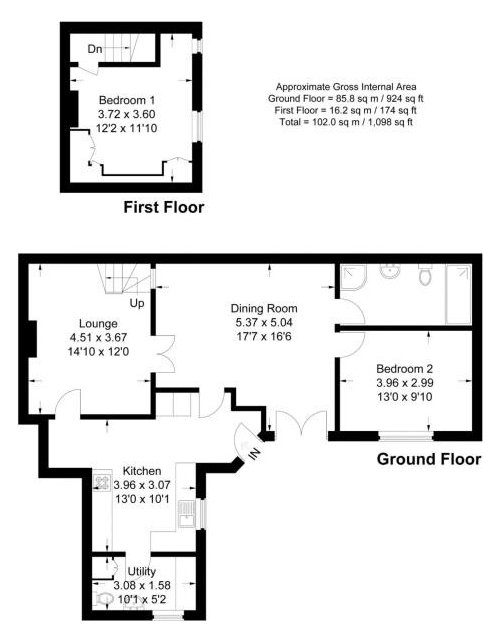

We're thinking of putting an offer on a house which was originally a 1 bed cottage but has been extended on the ground floor (to the side of the lounge) to create a large dining room, extra bedroom and bathroom. We like the location and character of the house and it has a good footprint compared with other places we have seen for our budget but the floorplan needs rejigging. Most importantly, we need to create a 3rd bedroom as we have 2 children but the extension has also created a windowless lounge which is a bit dark so we wonder how we could get more light into the plan? The extension part has a flat roof and a few little skylights over the dining room but bigger ones would be better! Our initial thought was to move the kitchen into the dining room and turn the old kitchen into the master bedroom with ensuite. Any advice as to how feasible this would be or other suggestions for what could be done with the floorplan would be much appreciated!

Many thanks!

Sort by:Oldest

Comments (6)

Steph
5 years ago
Do you have the budget to extend? The most obvious solution would be extend over the dining room without having to compromise the ground floor plan. Changing the kitchen/utility to a bedroom/Ensuite would be good, open up the wall between the lounge and dining room and make one large kitchen/dining/ lounge room. You would need to know where the drainage is located before moving the kitchen. I provide architectural design services for internal remodelling and extensions if you need further help info@41interiors.com
PRO
Room-by-Room (UK) Ltd
5 years ago
Hi Emily,

Could you provide some photographs of the rear and front elevations so that we can see the current roof please?
Related Discussions
Help needed to change flat layout & create 3rd bedroom
Q
Comments (14)
Hi again Jane. Any external changes, including windows, may require planning permission. If the property is a block of flats or mansion block this may be more of a challenge. You may have permitted development rights, which can be another good option. Any change, however small, is likely to be subject to a license to alter especially if there's a management company or a remote freeholder. This includes windows in any shape or form. As unreasonable as it may appear, The licensee / freeholder can quite legitimately sell you the space and the roof structure and then request a full license to alter application. It's also not a given that the you be awarded the license. Sorry if this comes across all doom and gloom. There usually ways design challenges. understanding all the risks as well as the potential is important.
...See More
What floor plan would work best for our guest bedroom
Q
Comments (12)
Wow- so overwhelmed by the replies and all of the help, couldn't appreciate it any more. Emily- thank you so much for your post. It's currently pushed against a wall which works fine but would prefer it to have access either side for a couple if possible :) Ace your space- I really like the layout that way, there is a radiator under the window (i should have said) so would need moving which think may be a bigger job. It's something i would consider though and hadn't though of it that way. Jonathon- I am in love with the pegs they would be perfect. Your room layout is my dream just didn't know if it would be achievable. I have a king size bed at the moment but it's a very big frame so much bigger than the standard measurements so if i turn it your way there is about a 8 cm gap to the shorter wall so it needs replacing. Man about the house- love the layout and interesting to get more than one view thank you so much All- can i please be cheeky and ask another question. I think my issue is a standard size double would fit e.g 190cm long but when i look at standard sites e.g John Lewis, Next, Dreams all of the beds seem to have a frame which is 208-210cm which would just be too long. Do you know where I can find a frame that is 190cm? I would have loved a flip storage bed but recognize that will be too long so I am open to any bed. Budget for bed up to about £700 ish. Less if obviously great and means more money to spend on the rest of room.
...See More
layout dilemma - open plan ground floor, master bedroom layout
Q
Comments (3)
You need to consider lots of things when designing overall floor layouts - walkway space, where the sun comes in from, how many inhabitants live here and how many likely guests etc - your kitchen dining for example doesn’t look to have enough walkway space around it and looks too small for six as you’d be overlapping plate space etc etc For projects like this, if you plan to live here some time, it’s worth booking a pro ( like a concept planner ) to either check things through with you, ie working with you to get things right - taking on board all of the info available and coming up with a viable safe design. If you click on my name or icon, you can have a look at the sort of design I’m talking about - as we have some past projects on our pro page. Nb. If this is just a house flip then what ever you do will probably be redone by new owners anyway, so not so important !
...See More
3rd Bedroom Renovation? or Stupid Idea?
Q
Comments (6)
People want an upstairs bathroom, I feel. When selling my mums house, which had one bathroom downstairs, and 3 bedrooms, it took nearly a year to sell it, and I felt it was the lack of upstairs bathroom, as well as No off street parking, that caused the delay. A house nearby sacrificed a bedroom to create a gorgeous bathroom, so in theory turning the house from a 3 bed to a 2 bed. It sold very quickly as it was beautifully refurbed. Of course it did devalue the house a little. I wonder if refiguring the upstairs would be possible? There are some very clever people on here who may be able to help.
...See More
PRO
Eulinea Ltd
5 years ago
Hi Emily,

If the Dining Room becomes a Kitchen / diner, then please bear in mind that access to bed 2 and Bathroom will be via the Kitchen, which is far from ideal. How about moving the Kitchen into your dark Lounge (drainage permitting), re-configure the dog leg shape staircase so that it is straight, open up your structural wall between your Lounge and your Dinning room, and make Bed 2 accessible from the Hallway (extend the partition wall with a fixed glass partition to maximize your lighting to cover the area in front of what looks like patio doors right next to your entrance). I hope it all makes sense, but external pictures would help. The Bathroom access via your Dining Room is also not ideal - overall, a difficult one to put right...Irina
PRO
The Kitchen Lady UK
5 years ago
I have another suggestion, how about turning the dark sitting room into a bedroom as bedrooms don't need as much light as the sitting room and kitchen.
then if you change the stairs to be straight and accessed from the dining room, or wiggled the walls so you can get down the stairs without going in the bedroom, I think you'd get your three bedrooms without huge cost as you're not moving the bedrooms.

However, perhaps a big picture job would be to swap the kitchen and bed 2 so you get the day wing and the night wing of the house.

Emily x
Emily Hazzard
5 years ago
Hi

Thanks everyone for taking the time to reply. Definitely food for thought! I've not got photos of the roof at the moment but we are going for a second viewing on Saturday so I'll take some then. In the meantime I've attached some of the pictures from the listing. Our favourite parts of the house are the original bits - the kitchen and lounge so I think opening up between the kitchen and lounge to create a kitchen/diner living space as Steph initially suggested would be good if its possible to remove the wall?! I think there would then be space for the dining room to be divided to provide a hall with perhaps utility storage adjacent to the bathroom and the extra bedroom we need. I've had a play around with the existing floorplan and come up with this - any comments (glaring obvious things I've missed!) would be so helpful. Once again, thanks!!

Entrance

Garden

Dining room
PRO
Eulinea Ltd
5 years ago
Hi Emily,

When you are coming downstairs to use the toilet, you have to cross the Living Room /Dining Room /Kitchen before you get to the Hallway; also, this means Bed 3 is somehow an 'extension' of the open plan downstairs, and you've lost your Utility Room!
