That was the original plan but can't get plumbing there - also we've been told as we're got permitted development sign off we can't change the window layout?

You absolutely can change the window layout.

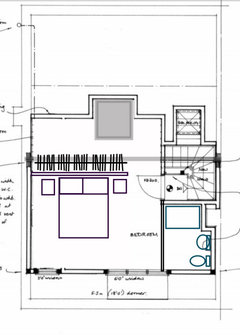

Here is an alternative plan. You would need to investigate the fall on the soil pipe. A macerator may be necessary

We did think about the plan you drew. What's your thoughts on the original layout shower by smaller window, followed by loo, sink then walk through to small dressing area and space by the stairs walk in wardrobe?

Your plan for this master bedroom there is no obvious place for a bed. In my mind that’s an epic fail.

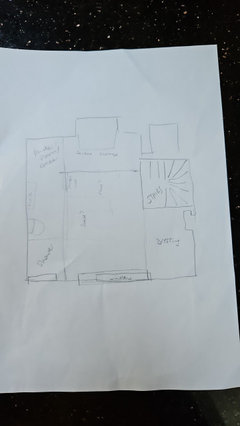

I'm no architect...thoughts on this??

I think you need to plan it to size. I think you are planning a master bedroom that is less than 9’ wide. If you have a big bed there is a chance you won’t even be able to open the door. Add to this a low ceiling height (inevitable in most loft conversions) it’s a poor master bedroom and frankly rooms on the floor below would probably be better. Consider having two attic bedrooms and no bathroom and then creating a master bedroom from two bedrooms downstairs.

Yes,

I agree with Jonathan,

the current layout that you have drawn up, doesn't work I'm afraid.

Hmmm...thanks both i see what you mean..the loft company designed the original picture.

From the picture it's an 18' dormer, with 6' floor to ceiling windows...my penciled drawing with pocket doors no good then?

We have a window for the original ensuite plans, would permitted dev allow us to remove this??

something like this would be much more spacious and without clearance issues.

Thank you - so just like Jonathan's.

What about Wardrobe space??

are the windows facing the back or the front, if the back, then it's normally much easier to change in the planning, but either should go through in my opinion. If u want u can also add a window in the ensuit as well.

Windows are back facing, plans originally had window in stairwell. Window in galley ensuite above shower to maximise natural light. 6 ft floor to ceiling windows and small windows above toilet

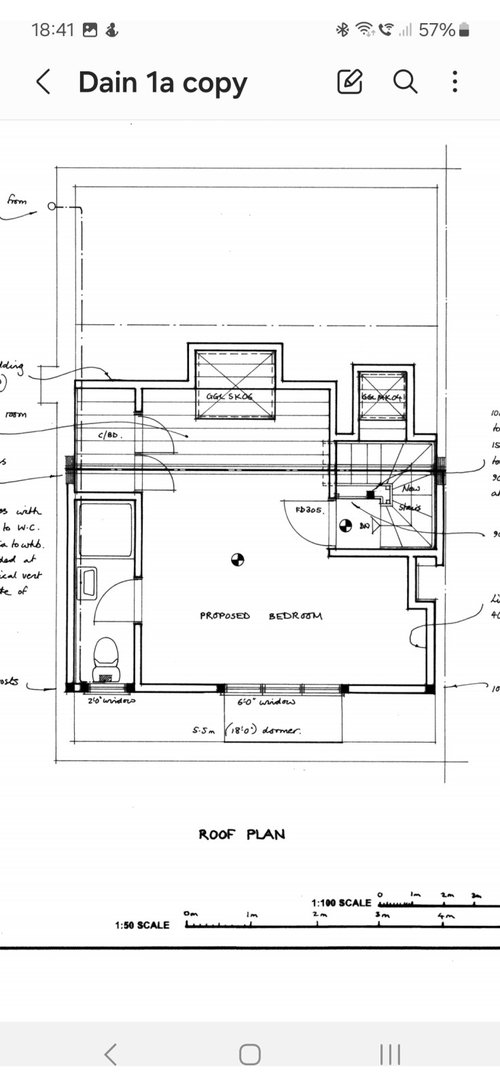

This is what they're first sketch looked like...

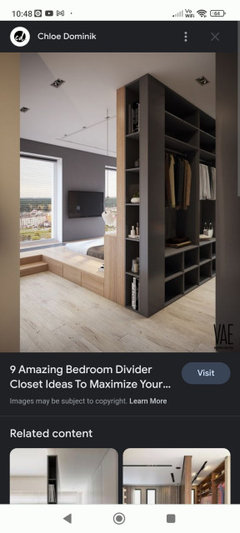

Perhaps this is better?

yes that would be better if there would be enough space.

The most recent pic with a dressing room entrance…… I estimate that space is 20’ front you back where yours is 15’. So in my opinion it’s too tight.

But we could get a smaller version of the latest picture?

We want a wow factor loft.

Ensuite / dressing room will be nice

that is the smaller version of your inspirational picture based on the space that you have.

You can create a wow factor by having large glazing through out that whole wall.

I think it's better to have large comfortable bed and open space, than small bed and more cramped space to fit all the components you want.

Thank you for all your help so far- will go back to loft people and see if we can move the ensuite window to the other side & if we need to go back for permitted development approval.

I’m not sure that cutting a room in half with a wall gives a wow factor but instead makes it seem smaller. But since you asked

That would give a bed a view of the back garden, so could work, do we know what is the slope of the roof and height?

Both my OH and I are tall people, so I'm always concerned about head clearance.

The reasons why we've done a 6ft window is for the views....can't find the height but OH is 6ft tall. And we're actually lowering the ceiling to get this done. It's an 1930 style house

Jonathan- that's actually what one of our original plans are.

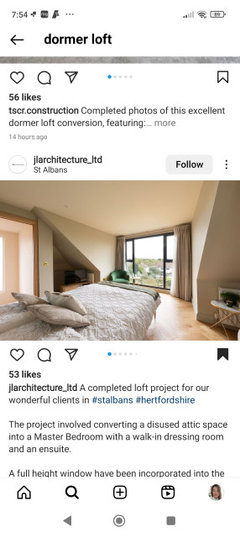

This is what inspired the floor to ceiling window

Consider having the bathroom not en-suite, somehow have the bedroom and bathroom doors at the top of the stairs. That way you get an extra bathroom which is useable for everyone and more choice around bedrooms (eg keep the biggest bedroom as ‘master’ and use the loft as kid’s bedroom/playroom or guest room).

Plumber came today- he said the plans are drawn based on easiest access to soil pipe..so big job and expense if we wanted ensuite move to other side of loft by stairs

Plan B then?
No bathroom on this level, split it into two bedrooms then you have a great master on the level below by combining two bedrooms

It's great that you're exploring different ideas for your loft layout. Without knowing the specifics of what the loft company proposed, it's a bit tricky to offer suggestions. However, you could consider factors like maximizing natural light, creating versatile spaces, and ensuring good airflow.

Looking at examples from the https://www.taylordloftconversions.com could inspire you with creative solutions. Additionally, think about your lifestyle and how you want to use the space. Do you need a home office, a cozy reading nook, or a spacious area for entertaining?

Feel free to share more details, and I'm sure the community here can provide some great ideas tailored to your needs!

I was just thinking about this……. If the soil pipe is anchored to that side of the house then surely the main stairs are too. So why are the loft stairs on the opposite side?

I'm so glad you said that Jonathan!! I was just thinking the same thing yesterday and flipping the stairs to the opposite side by the soil pipe .do you think that poses any issues from planning??

Can you post a rough plan of the first floor?

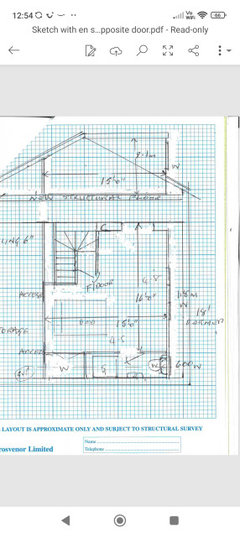

Jonathan - this is the floor below...was thinking possibly relocate the staircase where the bathroom is, currently there is a water tank in there which we can relocate into the eaves of the loft so it's out the way.

One alternative

And another if you want the master bedroom at the back

Excellent!! Thank you so much Jonathan for the suggestions! Never would have thought of any of these options

I'm assuming relocating the staircase from the original plans shouldn't pose too much of an issue??

I prefer the staircase to be over the original house stairs- it seems a better use of space. And based exclusively on plans I can’t see how it would be more difficult to build.

Completely agree! Moving the staircase above the original staircase and eating into the existing bathroom makes so much better of use of space, I will reach out to loft company- hopefully this doesn't pose any issues. Thanks again. I'm going to share your drawings to the loft company 😊

Alternative

These are amazing!! Thank you, so many great ideas!!
