Floorplan help needed!

last year

last modified: last year

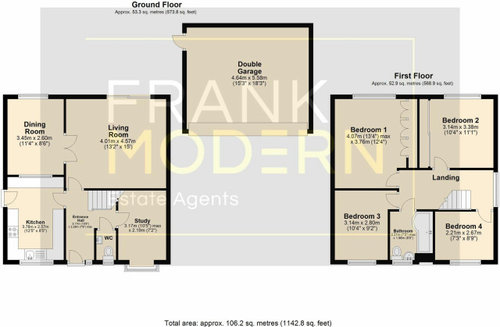

Hi everyone. I'm renovating my house next year that we moved into a few months ago. Below is the current floor plan. We find the kitchen to be quite crampt and always messy, including lack of space. Would really appreciate any help in redesigning our floor plan.

We have considered knocking through kitchen into dining room but then we're left with a long narrow kitchen and given the wall being knocked down has kitchen units on it, we are losing kitchen space in that area so to speak. We would prefer to avoid garage conversion or extension as this is not our forever home, but we do plan on living here for 10 years or so.

We would prefer not to have kitchen and living room in same space to avoid smells, noise etc.

Any feedback on this or better use of the space in anyway would be much appreciated.

Thank you so much.

Sort by:Oldest

Comments (2)

Oraanj Interior design
last year
Have you considered to removing the wall where the entrance is? In that way it there could be more space as well as making the kitchen and dining area one big open space, with having the study room as the dining area if walls were to be removed. The study room could be where the current dining room is. Another suggestion to this is potentially place an island unit for the kitchen it might be useful as you'd want more surface and you have your own space to prep food and a separate place to cook.

Please feel free to contact Oraanj Interiors for further enquiry!
PRO
studiomoodetc
last year
Hello,

I had a look at your layout and I came up with this idea:

This only works if you don't need a seperate study room and are willing to do some structural alternations.

So first up I've changed the study into a new entrance hall with a whole wall of storage which can house some overspill stuff from the kitchen. You'd have to change your bay window into entrance door and punch through an opening into the living room (if you want a direct access).

The wall between the kitchen and the old hallway has been removed while the space left by the old entrance door has been filled by a new window.

This allows for a bigger kitchen.

I suggest a small island in my idea with a cooking hob and a bank of tall units on the left (green colour).

Currently in your floor plan there seems to be some kind of a window between the kitchen and the dining room; I've turned it into an opening. You could have more fitted store each side of it, plus over the door cupboards if you need them.

This leads into the dining room.

Because you no longer have a study I've put a hideaway warking station here (purple colour). There is a range of standalone units on the market you can buy or you could have it made by a joiner or a big kitchen company.

I have kitted out the dining room with a fitted bench taking up the whole corner of the room with a table and chairs. This is not a big space and so the bench makes more sense in terms of space and can double as aditional storage space (under the seats).

How do you like this idea?

Hope this helps! :)

Jarek

www.studiomoodetc.com
