Amazing transformation!

Thanks Lynne. Ok - that makes it potentially a lot easier! You have 2 options when you need more headroom: 1 - You could lower the first floor ceiling, if there is room to do so, although this is of course very messy! You could then add a dormer to the rear under permitted development (if your property has permitted development rights). The other option is to raise the roof , which could be done in a few ways. You could either remove the existing roof completely and obtain planning approval to raise the pitch to enable more headroom, and add a dormer (if needed) in the process. The other option is to extend the front roof slope and add a dormer which provides sufficient headroom at the back. Please note that planning permission will always be required to raise the roof, and if you are in a conservation area, area of outstanding natural beauty, or Green Belt, or have any other restriction on the property, it may be harder to obtain planning permission for this. I hope this helps give you an idea of what you may be able to achieve. It would be advisable to speak to a local architect or agent who knows the area and will be able to provide more specific information and advice. All the best.

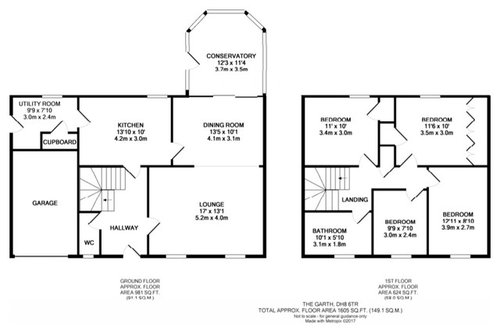

There are some really valid points made here so far and some thought-provoking space planning ideas so thanks so much for those. I wasn’t sure if people were interpreting the drawing lines near the dining table as a wall but they are in fact the outlines of where the RSJ structure would need to go. Also, the existing patio doors are drawn in but to tell you the truth I would remove those once I have building control sign off. Too many doors would be impractical and each one would need to have a door closer on it! But a necessary evil for fire reasons. I think the sprinkler systems are around £10K so I would rather not thanks. I see one design shows the living room open on the 1st floor but from what I understand that would not be allowed as there needs to be a safe protected means of escape from the bedrooms right down to the ground floor. The stairs need to be in an enclosure but correct me if I’m wrong. Using the garden doors as safe means of escape is a possibility and we have a side alley/access so a door could be added. On one design there is a utility which I am trying to fit in rather than just using the under stairs space for the washing machine etc. I don’t like the idea of walking through the kitchen instead of a hallway but I can see the point about that they wasted space. Although corridors are good place to hang art work and paintings! Also people might get in the way of the cook! One question which I’m finding hard to phrase…. At what stage in a property renovation does building control become applicable or more specifically when do the fire regs start to make an appearance? Is it because I’m adding a potential fire source to the garage? The neighbours opened up the existing kitchen on the 1st floor (see estate agent drawing) and combined the dining space with the kitchen. But there is no record of them consulting with the council but they did have to get building control for the garage conversion. Seems odd. But I just wander will the inspector be looking at the entire house (such as if toughened glass on patio doors) or just look at the conversion work in the garage? If I have to pass though the living room to get to the other staircase will this be an issue for example? I feel that I need to get a clearer ideal of what is really necessary and strip everything down to the essentials. I wish to spend a lot of time with an Architect but their time is expensive so I guess I’m trying to work out the best way to proceed in terms of the layout and design. The architect costs £80 per hour and he studied at a well-recognised University. He didn’t really listen or interview us but did one plan on top of my drawing and said shall we go with that then? He also said that access and egress is taking a lot of space which others are saying on Houzz. In one design I have opened up the whole ground floor space and changed the stairs to the front in a design but at what cost? At the same time I think I need to be quite pragmatic and too much structural changes are going to cost. The budget is not going to be huge for this house. Its not worth spending say £100K on this house as its next to a busy road and the property could end up being a real money pit. I was hoping for £50k finished but that’s with me laying the floor, decorating and making my own kitchen. Possibly being a laborer and doing the project timeline charts and ordering materials. Essentially, we need a family sized kitchen and since I have built a studio in the garden and park on the driveway it makes sense to convert the garage. The garage is long and narrow and more space I think is needed for a kitchen diner/family room. I am hesitant in placing loads of expensive RSJ’s everywhere and having sprinkler systems installed. Also, I don’t really want building control legislation to have to come into force on the whole house top to bottom. Maybe I’m being over fearful of Building Control! We had done drawings for a whole house recon fig including the top floor bedroom and where going to put two new staircases in. Building work got really expensive (Covid/cost of living etc) I got Nervous of increased materials costs too, builder so decided to scale back original plans and be a bit more pragmatic. We may have placed some constrains on the overall ‘ultimate’ layout design. But making use of the spare time available during the Covid restrictions was essential when it came to renovating the top floor bathroom. The top floor bedrooms work quite well as they are so I didn’t see much point in re-configuring everything. But I do get the message and it does make sense to have holistic approach in an ideal World. For me to take up the decking ready for the extension and cover up the astro turf is no real concern. I really wanted a home studio workshop and as the garage is going it gives more storage etc.

@katlucy thabks so much forbthe great ideas. I really like you idea for converting the stairs area. there used to be a whole row of houses the same, but most of them were knocked down in the in the 1950s, I think. you have given me the idea to have a look and see if i can see find and find any info about it.
