double sided fireplace

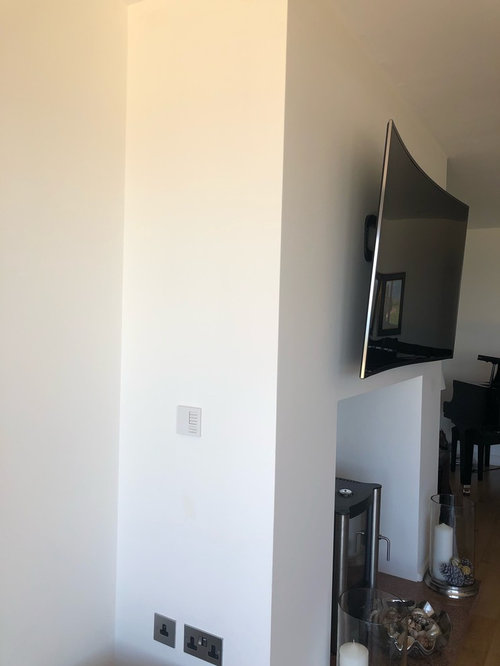

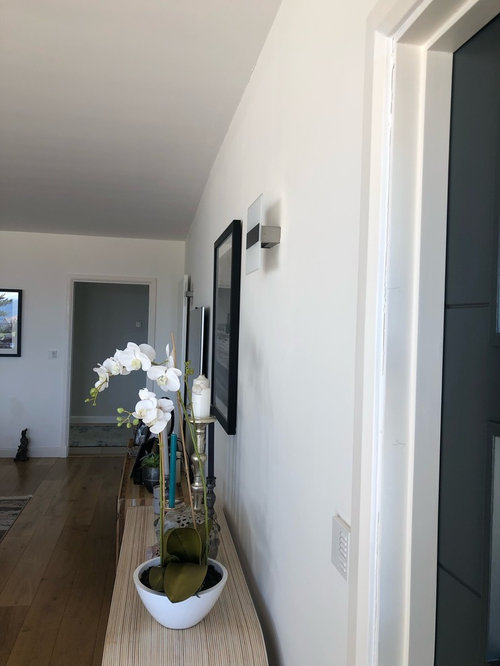

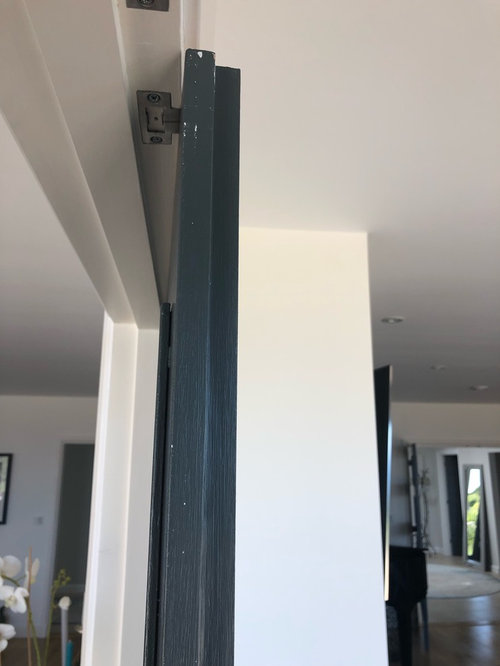

Hi I need help. We are removing the walls either side of what is currently a single sided fireplace. We need to add support beams each side, the issue is they will butt on the side of the original fireplace structure making it look like the fireplace should only be in one room. See the images below where you can clearly see the size of the fireplace in one of the room. We want to make this a double sided fireplace and have thought about building it out a little bit we don’t have the room to make it the same size as the current one. How can I make this not look like we’ve just taking the wall out and left the fireplace in one room. It’s difficult to explain but when you look at it side on the original fireplace structure will make it look like it’s more in one room and not in the centre.
Comments (9)
PRO7 years ago
7 years agoI've been thinking about this one for day, and I think i finally fell in what you're trying to describe.
The depth of the beam will not go across the whole depth of the chimney stack, and will be on one side. Like this?
If that's what you mean, then build a false beam so that the whole thing is chunky and Chimney stack width .
Related Discussions
Side building design dilemma
Comments (18)I would loose the doors to the side- you won't enjoy the best view, don't need the light but could do with the wall space. I also think the double sided fireplace is a choice for you not future buyers as it limits the wall space and use of the side room (which is fine). Personally I don't think you gain much by making it a dining room next to your current dining space. But I do think reclaiming an underused room and it having lots of possible uses is a brilliant plan. I think when you get the builders in you should either put a porch on the side (and make it big enough to also be a laundry room). Alternatively make the whole room longer by extending a few feet into the back garden so that there is room for both a shower room and a laundry and then move the side door to the back giving more privacy to the bonus room at the front....See MoreWhat type of fireplace is your favourite?
Comments (18)When we extended our house last year with a large fireplace we wanted a multi fuel burning stove. However the regulations regarding flue and chimney meant the neighbours would have been subjected (and may have objected) to this eyesore, even if at the back of the house. We settled for a Gas version. The stove itself (Huntington) looks exactly the same as the multi fuel version. However, we are really delighted with it. The flame looks really genuine and as others have stated there is no cleaning out and we have instant heat and sometimes so much output that we no longer have to turn on the central heating in the lower rooms! A real success. (Awaiting our first gas bill however)....See MoreDouble sided log burner
Comments (12)Hi, hope everyone is still up to commenting, I have a related question to the above. I want to do something similar to what Marie VW has done, except I want our double sided Burner to go between two rooms. Our living room and a family room which is part of an extension we had built and I am sure visually it will look superb. Between the 2 rooms is a solid wall that was the outside wall and a flue chimney which the Burner is to be located in. I am sure there are no structural or ventilation problems and I will get that checked, but my question is does anyone know whether there is anyway you can reduce the noise travel between the rooms from the opening in which the fire is located? Is it possible to have a heat resistant glass that would go across partly between the rooms? Has anyone any experience of a double sided burner between rooms and whether it does dissipate a lot of noise between rooms?...See MoreWhere to put the log burner in the open plan family/dining area?
Comments (6)Hi Shelly, Woodburner band aside! Mr. Gove must have forgotten that Drax power station uses wood burners!!! Although in the middle of the room, with a double sided option will make for the most dramatic setting. However, it will create a sub-division in an open plan layout. Plus flue could look unsightly, and exit could be a problem. Man about the house has it as we would look to site, as you will need to get flue out to open air. Plus that end of the space will not benefit from cooking and is on external wall too, so will be naturally cooler than the dining end. Placing it at the opposing end, dining, could heat the house better, but a bit of a faff, if you’re relaxing on the sofa. Make sure you get it sized properly, as UFH, not sure if you have it anywhere else or used it before; it heats slower than rads, therefore it’s very convenient to have an alternative heating source for changeable days, where you might only want heat for an hour or so. A good quality burner will start quick. Rather than infill the Drawing Room door, have you considered a pocket door or jib door. Helping the flow of house and stopping that room being under used, plus keeping the natural light level higher. Looking at the layout, have you consider the location of the utility and WC? If you have the budget, swap them around. So anyone using the guest room doesn’t need to go through the kitchen to use the shower/toilet. Hope that helps, and good luck....See More- PRO7 years ago
PRO7 years agolast modified: 7 years agoHi Diane,
I think this has all gotten a little confused.
Brandler the idea looks to be to remove the walls either side of the fireplace not to add alcoves. The new steel beam would be needed to pick up the floors and any walls above the removed walls. Maths Wife I don't think you are far off but the RSJ would be on the opposite side (over the existing wall), so where you have marked a false beam.
The two options I can think to remedy the problem of the fireplace looking more within one room than the other are to extend the boxing around the new beam so that it comes to the front of the fireplace on both sides and so that both sides are even. This may not give the look you are after. So the other option is to form a false chimney breast in the room which will be sharing the fire. This will though set the fire deeper into the recess. Or as a bonus third option you could combine the two and come out with a false chimney a little into the second room and then extend the beam boxing almost to the front of the existing chimney breast.
Good luck and let us all know how you get on.
Ohh and as a shameless plug, which seems to upset some people, here is a double sided fire we designed on a previous project.
