Help with narrow bathroom layout please!

10 months ago

last modified: 10 months ago

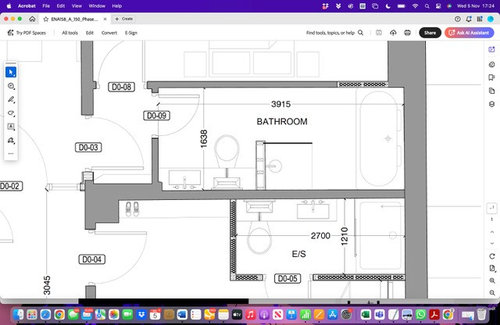

The bathroom is long but narrow - i'd like to put a bath in at the far end but measurement there is actually 1500 as a strucutural piece in the way that isn't marked at the back (the bottom of a victorian curve on the wall!). It has been suggested putting the shower like this but I like with a narrow room it will look cut off? Should I go for shower next to bath so tap fittings along the same wall as the toilet and sink - which do need to be the other way round to this layout btw .. or do I just need to do the old school shower over bath? There will be just a shower in the en suite adjoining ...see plan. Would love some help on this please. Thanks so much

Sort by:Oldest

Comments (2)

Juliet Docherty
10 months ago
I think it would looks so much nicer to just have a bath with a hair rinsing shower low down. Especially if you have a 'proper' shower next door. We've just finished two ensuites and we're about to do our upstiars bathroom which currently has a bath and shower cubicle squeezed into a very similar shaped room, it looks cramped and fussy.

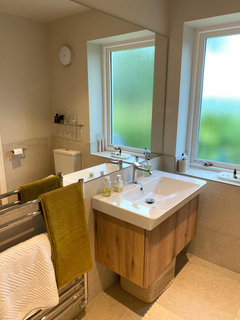

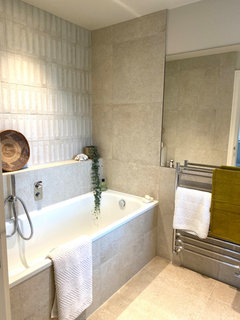

I would lose the shower and as the room is so long you can afford to build out a really deep false wall for valves and to create a focal point. Hide the toilet behind the door and insert a really nice generous sink unit so the fist thing you see is that and perhaps a feature wall above the bath. This is one of our ensuites.
CWD
10 months ago
Think you should have shower beside bath, but tiled floor so a wet room (rather than a shower tray), with just a simple pane of glass to separate shower from sink/toilet. All plumbing fixtures on the same wall as toilet/sink. The shower will disappear visually but will be easier to use than over the shower. The bath will get splashed every time the shower is used though - if you can't handle that, then just do shower over bath. Both option provide room for a more generous sink unit - or you could actually shorten the ensuite and make it a bit more spacious in the entry space outside of the ensuite.
