Kitchen extension help!

2 years ago

Hi all,

I’m in the process of buying a new house, and have always dreamed of having a big open plan kitchen/dining/living room with bifolding doors. The house I’m buying has so much potential, but the house is very high up as the garden is on a slope and also has a side garage. I can’t visualise how I could have a big open plan space!

Has anyone done similar or have any ideas?

Comments (7)

arc3d
2 years ago
Being on a slope won't affect your house being open plan. Open plan is usually created by removing walls between rooms.
hedgehog99
2 years ago
Can you post the floor plan too?
Related Discussions
New Kitchen Extension Layout Help
Q
Comments (13)
@Jon Burchfield thanks, that looks really nice! Slight issue is that we have a pitched roof on the new side infilled area. Unfortunately planning constraints mean that the height at the wall will be 2.6m falling to just 2m. I know the velux windows are recessed into the roof but if we have tall units on that side it might block out the light, how high are the units? Having a 450mm unit in that corner would be practical but I think it would look a little odd if we had 600mm units next to it. Perhaps 450mm either end with 3 600mm in the middle would look ok? @Mark Bassage @kwg kwg Thanks. Take on board the hob suggestion from everyone. Seems sensible to have it on the other side. The oven/microwave is a tricky one, if we go with the peninsula design unless we have them under the counter then the only space would be just on the left as you enter. That's practical, but we're slightly concerned this ruins the nice open feel you would get to the left as you enter. @i-architect that is something i'd considered, first impression from the company is that it would be possible but i'm not sure why. I'll check with the builders. It would make access to the under stair cupboard a little trickier but might be more practical to make the most of the kitchen space
...See More
design dilemma - new wrap around extension (kitchen extension)
Q
Comments (6)
Personally I think you need to bin the idea to put the kitchen there because it divides the space in such a way that there are four areas that have no apparent purpose and are not really big enough to do anything with. I suggest you blank out the kitchen cabinet position and the utility room on the plan and give the blank space to a kitchen professional to show where they would put the cabinets.
...See More
Planning for kitchen extension help please ? Area use help / design
Q
Comments (3)
Hi, I am a lighting designer if you need help designing a scheme and specifying fittings. Kind regards, Katie
...See More
Help with rear kitchen/dining extension
Q
Comments (7)
Just a thought without having to extend is to make a large kitchen diner in what is now the living room and make a nice cosier sitting room/snug in the present kitchen. It will réquire re-jigging plumbing etc but new living room can have bifold/patio doors to garden. If you do have an extension and keep layout as is, may be good idea to have a roof lantern in extension for light. I don't know what you have in mind and your needs etc so just something to consider.
...See More
Alex O’Connor
Original Author
2 years ago
Here’s the existing floor plan, and here’s a (rubbish!) mock-up I’ve done of what I’d love to do, I’d love to extend out to give more room for a big open plan kitchen/dining but not sure how this would work with the very low garden!
hedgehog99
2 years ago
How far out would the extension go? Doesn't look like very much, but you'd also need to consider where you "land" when you go out of the bifold doors - would you want a terrace at that level? It's certainly not impossible but would require new retaining walls to be built in order to provide the firm footings for the extension and terrace, plus you'd need to think about steps down to the lawn which would be a substantially bigger drop than before. If there's no side access, the groundworks would be tricky as there's nowhere to get a digger in - but perhaps there is access? I'd get an architect round for an initial consultation to see what's possible. Also not sure what width you have and whether that's enough for a run of units, island and dining table - do you know what the width measurement is? Bear in mind you'll need about 600mm for the run, 1000mm (ish) for a gap, 900mm (ish) for an island though it could be a skinny one at 600mm, then possibly 3500mm for dining table and chairs which you can walk around on both sides - so that's about 5700mm minimum if I've done my sums right (though a bench arrangement on one side can minimise the dining space. I seem to remember that @rinked has some handy measurements for minimum sizes of tables & chairs.) But an island is not the be-all-and-end-all of a lovely kitchen - you may be able to create something you love with runs of units and a dining table in the middle. BTW I don't think the garage is actually there, is it? It's just that it's put there on the estate agent's drawing and has stayed on your drawing by accident?
Alex O’Connor
Original Author
2 years ago

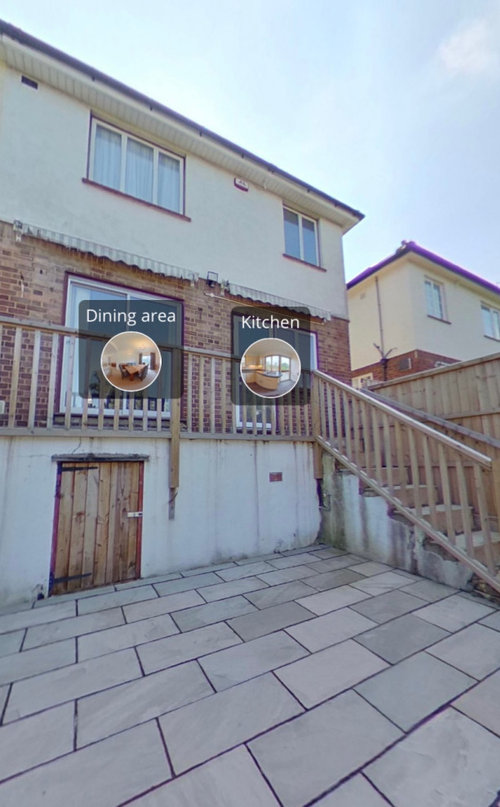

The garage is here to the left! You can have a look at the garden here if you want - https://seekbeak.com/v/p9z67vnAjQk - I love these things! Thanks so much for your help.
hedgehog99
2 years ago
Yep I meant it's not positioned right outside where you want the kitchen/diner to be.
PRO
Nest Estimating Ltd
2 years ago
Hi Alex, we recently provided a first time buyer with a budget cost estimate for similar works. The budget cost estimate provides a detailed breakdown of works and expenses as well as highlighting potential areas where you can save money. They were then able to determine whether they wanted to go ahead with the purchase of the property. If this is something of interest please send the plans and photos to hello@nestestimating.co.uk and we can provide you with a quote.
