New Kitchen Layout Help Needed, Please!

3 months ago

Hello helpful Houzzers :)

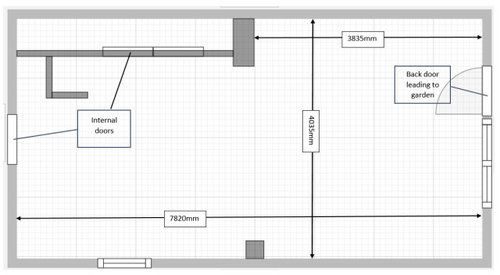

We are looking to install a new kitchen in this space and I need some help!

I would be very glad to hear what layout suggestions & advice you have - I will put a couple of initial ideas in the comments below, what do you think is best? Or should I start over?! Please do let me know if I have missed something vital!

A couple of background points - we have 2 young children and love cooking & entertaining.

Featured Answer

Daisy England

3 months ago

last modified: 3 months ago

What a big space.

I always recommend a 900 x 900 L shaped corner unit as opposed to a straight corner unit. On that straight 900 unit you will only have a 400 door and that makes it very difficult to get into the corner. You will be on your knees. If you have a 900 x 900L you will have 2 doors that open therefore enabling you full access into all of the corner. If you swap that you will need to amend the adjoining cabinets because of the size.

Just be careful of dropping the DW door down if it’s by an exterior door. Many of us drop it down when the cycle is complete to cool off the pots and pans. You don’t want to walk into it.

I think my preference is the first plan. To me it balances better. Plan 2 seems empty with nothing on the wall unless you intend to add shelves.

Sort by:Oldest

Comments (11)

Agatha Jay
Original Author
3 months ago
Idea 1:
Agatha Jay
Original Author
3 months ago
Idea 2: (Should I have wall cupboards either side of the hob?)
Related Discussions
Need help with our new kitchen extension layout
Q
Comments (6)
I like Option 2 honestly. Obviously you are finding it hard to visalize what the space will look like but honestly that is a huge space so I would recommend putting in the utility considering what you gain from it. You gain a space where you can block out the sound of the washing machine- who wants that sound when your eating dinner? Also washing is unsightly- do you wants piles of clothes in your nice brand spanking new kitchen? In terms of the corridor you are going to have lots of light coming through from the new extension. When you enter the front door and can see straight through to the garden spaces feel much bigger than they actually are anyway. Also who says it has to be boring. Have some fun wallpaper or colourful art hanging. Also if you want to make something more spacious use sliding doors for utility and wc. Less items infringing on corridor space. And lastly, the reception is purely personal preference based upon how your family function. Personally I prefer two rooms. Allows for more space to get away from the open plan area. Mini adults room and a kids room/study. Hope this helps
...See More
New floorplan/layout advice and help please
Q
Comments (14)
Hi Lisamarie. Do you have the measurements? It may hopefully encourage people to help rather than guesstimating based on the doors and kitchen cabinets. How will the internal corridor work in the garage? Will there just be a door knocked through from the drive? Is extending the flat roof extension an option although you may need to do something with the pitch of the roof? Have you had a quote for moving the boiler and electrics? How much storage do you need left in the garage? Can the stairs be moved?
...See More
Need help with new layout please
Q
Comments (5)
Thanks so much Bernard for that! I realise soil pipes etc need moving but will be having a downstairs loo to the left of the big pipe that comes down and been told it's workable! The front door will hopefully be a wooden 1930s style and was thinking of changing the roof area above to a pitch type roof! I have tried to down load the apps that do the 3D effects but haven't been very successful so far lol!
...See More
New room, new kitchen, layout advice still needed and much appreciated
Q
Comments (11)
I had a ushaped kitchen with peninsula in previous house as no room for island. I never felt stuck behind it- in fact i liked the fact that guests and kids were more likely to stay on the dining side out of my way! I now have an island as I'm stuck with the kitchen in the house we bought, and it drives me a bit crazy when there are lots of people in the kitchen as they all gather around the island and get in the way! I think your plan is pretty good except for oven position. I think it's really far from your workspace, and also I'd question the wisdom of having the oven beside the fridge? Maybe a tall larder cupboard in this position, and a range style cooker with double oven beneath? Or move the hob to the peninsula and put double oven somewhere along that wall?
...See More
Agatha Jay
Original Author
3 months ago
Looking forward to hearing from you - thanks!
Agatha Jay
Original Author
3 months ago
Thank you for your comments @Daisy England, really appreciate them.

Good point re. the dishwasher door.

I get what you are saying about the corner cupboard, but I currently have two 900 x 900 L-shape units and I don't like how things disappear to the back and I'm on my knees to discover what I have lost!!
I intend to get one of these pull-out units:
twamleyk
3 months ago
DO you intend to eat at the counter/island, or do you have another space for a dining table?
CWD
3 months ago
I prefer the second one as I like a full wall of tall cabinets - really nice that they are set back from the kitchen so not jutting into the room. i feel like it opens up the whole room a lot more than the first with those tall cabinet dividing that wall. it also provides more space around the hob which I don't think the first option provides. I'd just have more of a think about which tall cabinet go where - fridge and larder needs to be closer to the action for me, but ovens and freezer can be further away. i'd also consider double ovens on a vertical stack rather than side by side so it frees up space for more useful larder space - maybe a small appliances cupboard or bar area for example. And go through everything you have and plan for where which cupboard/drawer it will go in to see how many units you need. The units at the far end might be great for toys and art supplies for the kids, but if you don't need the storage then think about whether you really need them - perhaps a freestanding piece of furniture would provide enough storage and be nicer to look at?
Agatha Jay
Original Author
3 months ago
@twamleyk We do have a separate dining room for main meals & entertaining, but we intend to use the island as a place where the 4 of us can have a quick meal together, and the children will always have their breakfast there... And it would be a space to sit for morning coffee, kids to do homework while mum is prepping dinner, to chat with a friend, baking with the kids ....etc etc!
Jonathan
3 months ago
Personally I think that you could reduce the number of steps by putting the fridge ovens, sink and hob all on island and one side of the kitchen only.

You might consider going for a longer island as there is unused space towards the centre of the house.

You could even get rid of the back door and kitchen windows and replace them with French doors or bifolds.
Jonathan
3 months ago
One option
PRO
Lifestyle Kitchens
3 months ago
I think plan2 looks/works best but i'd suggest a few changes.

For the tower run, having only a 20mm filler is to tight and doors open more than 90 degrees so they'll be rubbing at the freezer end, i'd suggest changing the 600 and 800 larders to a 1200 breakfast style larder, having drawers and worktop inside, shelved above and power for toaster etc, the doors can be pocket style so they open then slide down the sides out of the way when in use, make the wall nib a bit wider by about 100mm so you have 50-70mm fillers at each end, probably bring the towers forward (or make them extra deep) and this would allow for the pocket doors to slide away more. Depending on ceiling height you could have extra tall towers or top boxes on top and then infill about 50-100mm up to the ceiling. Also check the height of the appliances as in the pics it looks to high, i'd have a 450 frontal with pan drawer and internal drawer instead.

On the opposite wall as long as all the 800 drawer units end past the window is good, window sill same as worktop possibly, (either end the run before or after the window) lose the 400 open unit in front of the wall nib and have a door (door could be made to look like 2 drawer fronts to match) on this as it will be just a dust trap, in the 1000 drawer units i'd suggest having internal drawers for utensils etc, the corner unit is good especially with the fly moon pull out as they're great (in my opinion) and as the corner post is made on site its gives the fitter more flexibility in positioning the units as its not a fixed corner. The sink run is fine but i wouldn't suggest opening a d/washer door to let the steam out as it can damage the surrounding doors, cabinets, decor panels and even worktops (thread on mumsnet where steam has damaged granite worktops).

For the island if a 500 bin is big enough then fine but you might find a 600 pull out is better as its usually a 4 bin unit, possibly change the 1000 1+2 so its a 2 pan with internal drawer and then on the other side i'd have 2x 800 which would look more symetrical.

For wall units its up to you, but if its an electric hob (especially induction) the extractor should be wider than the hob and if this area is going to be a main prep area than having wall units you can add extra lighting.
