Open Plan Ceiling Dilemma

8 years ago

Hi All,

We have an open plan living/kitchen/dining area of around 12m x 7.5m. Of this the rear 2m is a sloping ceiling finishing at the rear wall to the garden which is almost fully glazed with a combination of sliding doors/windows etc. We have the following 2 options for the remainder of the ceiling

1) Have 1 level at a height of 2.35m

2) Have 2 downstands of around 15-20cm along the length of the room (to hide the beams) and a ceiling height of 2.45m elsewhere. We could also add additional downstands to create square or rectangular patterns in the ceiling. This option would allow us to have strip LED lighting in the ceiling and therefore reduce the number of spotlights.

We are going for a fairly modern minimal look but are concerned whether or not the ceiling will look too low with option 1 or too fussy with option 2.

Any suggestions would be most appreciated.

Sort by:Oldest

Comments (4)

PRO
Darklight Design Ltd
8 years ago
Hi there.

this sounds like an interesting project and dilemma. there are a couple of options you could entertain in this instance.

1- drop the centre ceiling so its level withe the perimeter ceiling but leaving a shadow gap of 150mm. using a profile such as the DsL profile below you can easily drop in some linear led . Note the shadow gap in the ceiling of the second image. You can then add in downlighters in the dropped ceiling for general light to highlight that particular zone.

2- You could use the same profile but install it to the lower perimeter ceiling so that the light washes into the raised ceiling such as the picture below. This will add height and by adding in downlighters to the middle areas you can define that zone.

Pendants instead of or as well as the downlights can further enhance the living zone depending on if you have an island/table over which to hang some decorative lights.

I hope this information helps and good luck with the project.
Chetan Mehta
8 years ago

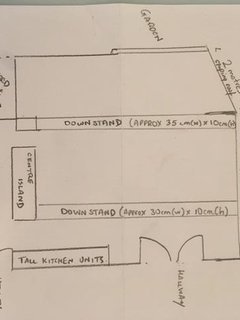

Thank you so much for your advice DD Ltd. It is very much appreciated. I'm attaching a photo (very rough I'm afraid) to show one of the proposals. Instead of having the downstands visible we could simply lower the whole flat section of roof. Or I guess to follow your suggestion we would need to create an additional downstand along the side of the room adjoing the hall and utitlity and then create 2 sections in the middle (1 between each downstand). Is that right?
Related Discussions
Colour dilemma north/south facing open plan space
Q
Comments (53)
Dulux Rock Salt is a grey but off-white which reflects a lot of light but dries darker than a white. It joins warmer colours like blush or grape well and the Laura Ashley Garrat side table in honey you can see sits well too. It easily matches your marble but would join your tiles, accent wall and floor up I'm positive. This is in our westerly facing landing and stairs which doesn't get a massive amount of light; painted this week (so not quite finished). In my view, yellowy greys look more of a beige too and would look sickly with your other colours (the dust sheets you can see are creamy beige for context). Rock salt looks very clean without out being cold.
...See More
open plan dilemma
Q
Comments (3)
I’m not very good at flows etc but I do wonder whether you might be a bit short on worktop space? There’s a long run of tall units, but not much worktop area that I can see. I’m not a fan of hobs on islands, but I know they are popular. I think I would try to find a way to incorporate the Christmas lounge with the rest of the house, maybe glazed doors in place of the wall to improve lighting and give the option of closing off if need be. With the dining table so close to the island, do you need both? But there are others on here who have much more insight than I do on these matters. Have fun planning. Angie
...See More
Open Plan Kitchen/Living/Dining Design Dilemma
Q
Comments (7)
Oval dining tables are able to seat everyone comfortably and a good choice. Not so easy to come by however! Maybe a glass top table would add a bit of sparkle/bounce light around the area? If you have kids an oval or round extending to oval best. My dining table is oval with extra leaf added to round top and I keep it as extended. Might be easier to find round to oval than just looking for fixed oval top? Choose a sofa with neutral but washable loose covers (ie machine wash) and add colourful cushions to make a statement. As your wood in new kitchen is dark and warm tones, follow the warm tones with dining table/chair/sofa legs in dark wood.
...See More
Open plan layout dilemma
Q
Comments (16)
You know I think I still prefer no. 2, whilst retaining the cloakroom, because in this version you have three seating areas spread quite thinly. I think it is better to have a decent sized seating area in the family area and, if you have the luxury of space, a snug to escape to. Also it is nice to be able to look out at the garden from the kitchen especially if you have children out there and you want to keep an eye whilst you are cooking. I have only just noticed that you have two doors into the utility. Could you manage with just the one? It would give you more room for more cupboards in there. The smaller dining table works better or you can have an expandable one for big gatherings. I have forgotten what a big gathering feels like. Heck I have forgotten what a group of more than two feels like!
...See More
PRO
Darklight Design Ltd
8 years ago
Hi Chetan, now I understand.

If the downstands are just hiding the beams then i may consider using the DSL profile still but on the outer sides of the beam rather than the inner. this is for detail only but will create a nice wash of light in those narrower areas. I would then consider pendants above the island and downlights to the other areas for general lighting but maybe position them more so they are specific to the furniture placement within the room.

hope this makes sense.
chetancsm
Original Author
8 years ago
Apologies for the delay however once again thank you DD Ltd for your advice. It is very much appreciated.
