Victorian terrace living area layout help

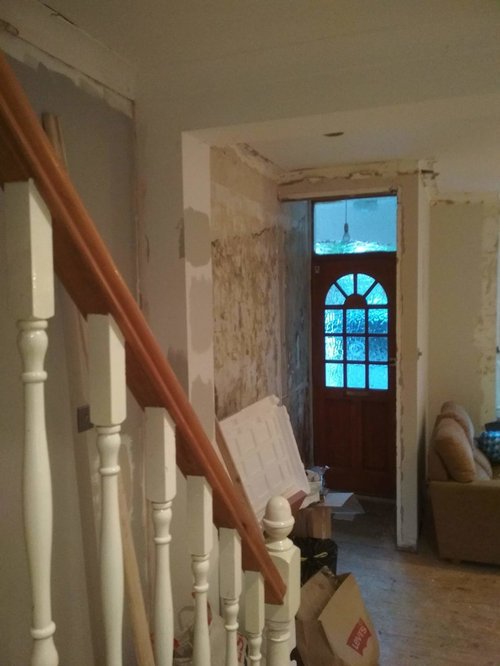

Currently the living area is all open plan with a small square entrance area. An RSJ has been put in that spans the width but the supporting column one end projects from the wall where the corridor used to be. We want to reinstate the corridor (up to the start of the stairs) by putting a stud wall up straight across from the entrance area to the kitchen. We feel this would make the living area feel like a room that we could make homely and we fully intend to covert the loft in the future which will require this area to be closed off in order for building control to sign it off unless we installed some form of mist system for fire protection. However the supporting column would create a pinch point should we reinstate the corridor where the corridor might be under 60cm wide. This is pretty tight especially getting furniture upstairs so to counter this we install double doors directly opposite as the access point into the lounge. On the plans it looks ok, but i'm a bit worried in reality that won't be the case?
Other options i've thought of include angling doors at 45 degrees and have an stud wall with a square opening forming two rooms or moving the supporting column to the middle room and similarly forming two rooms but both would be more costly and we feel like the top part of the living area becomes a bit redundant

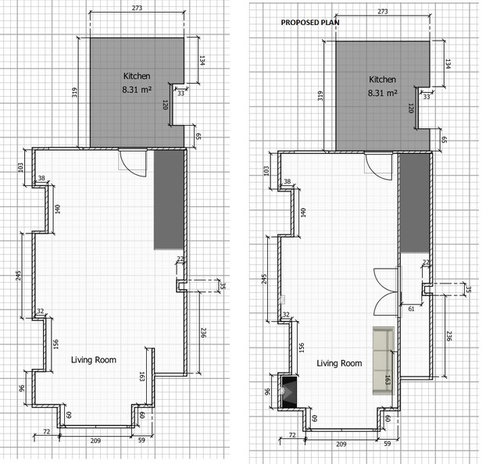

Plans
3d of new layout
Any thoughts or input would be greatly appreciated.
Comments (8)
7 years agoFirstly 60cm is not wide enough for your hall.
Secondly if you put a pillar here can you get rid of the pier in the hall?
Martin thanked JonathanRelated Discussions
Awkward kitchen and bathroom layout - victorian terrace
Comments (6)Hiya, Sounds like you could be perfect for out show. Sarah Beeny “Renovate Don’t Relocate” is on the lookout for people who want to transform their homes! Our experts will help someone transform their homes, and the way they use them. Filming is taking place in the Greater London and South area. We are looking for people who have a budget to renovate, update or change their home but want to be sure they get it right by getting advice from a professional. If you would like more details, please email the team now: apply@outlineproductions.co.uk All applicants must be over the age of 18 and be a UK resident....See MoreRenovation of London Victorian terrace - need creative layout advice:)
Comments (36)Hi there! I’d love to hear what you are using the under the stair spaces for. It looks like the bike could fit under the stairs near main entrance comfortably. You then could use the current bike area for the utility i.e. muddy stuff mops and sports equipment. As such you would need to install shelves to add on the storage space. I’d like to agree with Minipie that, if you really love for the bike area to remain as is, as I feel you might, the next best position for the utility is in the basement. The basement offers several advantages as compared to hiving off a space on G.F, especially when you consider the available space which you’d require to store all the stuff you said. I imagine sports equipment for example would need quite a generous area. I like the idea of a cosier retiring area for the library and I would really recommend an alterations for that. As for a pantry usable from the kitchen, options look really limited but I’d know what you think about moving the toilet across to the opposite void area, and then converting the new space to a pantry. It’s both proximal to the kitchen island, and will also not complicate the plumbing process, since you also want to introduce a sink in there. Hope this is useful! If you need more guidance, feel free to drop me a line or check out our site: www.betterspace.co...See MoreVictorian terrace - Kitchen layout advice required!
Comments (8)So the bit in the light blue circle looks like a cupboard, perhaps with a stacked wachine machine/tumble dryer in it? (good idea if so). But do you mean just past that cupboard, ie along the left hand wall as you come into the kitchen? If so then yes you absolutely could put the fridge there, it’s just going to be a bit bulky as will stick out further than normal units, and you may feel it’s in the way a lot as that’s your main way in and out of the kitchen. Also it wouldn‘t be able to go right in the corner, it would need a slim unit to the left of it so you can open it fully. So that would push it further towards the island and again that means it’s blocking the main walkway more. You could however push the island further towards the garden than shown in the plan, which would mean you have more space in that entrance area, and then it is more feasible to have the fridge along that left hand wall, as people can get past. Anyway, there are certainly options, it’s just worth planning the kitchen layout and checking it all works ergonomically before you commit to the window! As regards kitchen units under side return: you can have wall units or tall units under a side return, it depends how you make the roof. It’s true though that most people prefer to leave that wall clear of wall/tall units, usually that’s where a dining table or sofa goes. Here are some pictures of side returns with tall or wall units under. The first one looks the neatest as they have the roof part glass part solid and have tucked the units under the solid bit, but I suspect they have an unusually wide side return:...See MoreVictorian Terrace Layout Help Needed
Comments (1)Could you instead put the stairs along the other wall where the fireplace is in the dining room taking it up into bedroom 2? I am thinking that this would mean you could keep bedroom 1 and 3 with their own door (you would need to move bedroom 3 door) and create a bathroom and hall out of bedroom 2. The downside is you wouldn’t have a window in your bathroom but you will have one in the hall so you could have a glazed door into the bathroom (reeded glass is nice and would suit a 1930’s house). If you are serious about a loft conversion then (if you haven’t done so already) it would be worthwhile viewing the house again to see the loft. Take along someone who can advise who may also be able to advise about potential locations of stairs....See More- 7 years ago
- 7 years ago
- 7 years agoAnother thought..... take out the wall by the front door and replace it with another making the hallway a little wider so that the pinch point is acceptable
- 7 years ago
I think we are siding with bringing the wall out now like this
Either that or the corner doors as drawn above unless anyone has any other bright ideas?
- PRO7 years ago
I really like that, it makes the lounge cosier and I didn't care much for the double doors, the wall wasn't long enough to take them in my opinion.
You could keep the hallway the same width all the way through by repositioning the RSJ. You won't need the length it is now if you put the wall back up as it can sit on that instead of the nib in the hall. More work, but you get a straight hallway & lounge wall out of it.
Martin thanked User
