Problem with upstairs layout!

10 years ago

Hi everyone

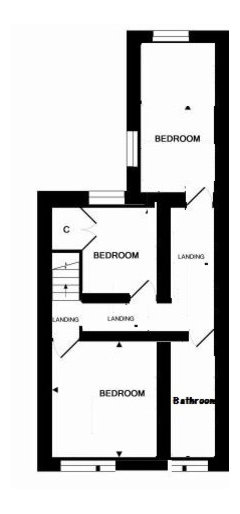

Please can you help me with the upstairs layout of this property. You currently have to go through two bedrooms in order to get to the bathroom! Has anyone got any ideas on how this could be solved?

It needs to remain a 3 bedroom property, with decent sized bedrooms. I think bedroom 3 is maybe a little small as the left side would forever need to be clear for a walkway to the bathroom. I have stared at the plan for hours and just cannot fathom a way to create 3 good sized bedrooms and a bathroom without losing space and spending a fortune!! Any ideas would be welcomed :) I suppose a downstairs toilet in the utility area would help avoid sending guests through bedrooms but whoever is in bedroom 3 will still forever be frustrated by family members coming through the room to have a bath.

Sort by:Oldest

Comments (3)

Jonathan
10 years ago
Assuming the budget will stretch I would put an internal bathroom in the middle bedroom, have a kitchen sized bedroom where the current bedroom/bathroom is and then put a bedroom in the attic
PRO
Arq-A Interiors Limited
10 years ago
I can understand your frustration, there's no obvious solution without reconfiguring the whole floor at large expense. The problem lies in the fact the stairs are on the other side to the narrower back of the house, leaving this inaccessible unless you go through the middle bedroom. I've sketched up the most obvious solution (and cheapest) however you would still have to go through bedroom 2 to access bedroom 3 and it leaves you with a small bathroom (and a peculiar shape!), you would also have to lose the window in the middle bedroom. Hopefully this can be food for thought though. Can you let me know your email address and I'll send the plan over, for some reason I can't attach it to this message! Best regards, Caroline.
Related Discussions
Upstairs redesign of a end of terrace cottage
Q
Comments (1)
id suggest swapping bed2 with the bathroom and moving the door to include some of the landing to make the bedroom larger (that was the bathroom before ) if that makes sense ?!
...See More
Help with upstairs floor layout please!
Q
Comments (7)
Thanks, @minipie. That's an interesting idea - I would love to include walk-in wardrobes in our room! The problem is that we wouldn't be able to have a window in the main bathroom. I'm not sure about having the pipes, etc, on that side of the house, either. I need to ask the person who did the drawings for us about that cut out on Bedroom 3 - It would really help if it wasn't there, but I assumed he included it because he had to. And @Ellie, you're right - the new Master does look smaller than Bedroom 1, which is what we're currently in. We were just talking about how we wouldn't be able to fit our enormous set of drawers in the new Master, even if we had built-in wardrobes! So it doesn't make much sense.
...See More
changing upstairs layout
Q
Comments (13)
If you only have one child, put them in one of the other bedrooms. Then move your bed into the balcony bedroom but keep all your clothes in the current bay bedroom and use it as your dressing room. I'd put a bed in there too so it can be the guest room, but as long as you don't have guests all the time it'll be a fabulous dressing room - leaving your new balcony bedroom as a place just to sleep - and wake up with the view. Especially useful if one of you gets up much earlier than the other - leave the bedroom, use bathroom and dressing room and never have to disturb the partner still sleeping. I would do this as a temporary measure to see how you like that balcony bedroom - and also to try it out for size. Of course you can move that stud wall and make the doorways work to enter both bedrooms from the hall, but might be worth checking how much space you actually need first.
...See More
Floor Plan- Should we buy?!
Q
Comments (7)
The floor space is usually measured wall to wall so may well include a built-in cupboard. If a double storey extension is essential then a quick consultation with a planning consultant might be worth it at this stage if there are many other things that you like about the property. Changing the bedroom layouts to your requirements is going to be very tricky. The bathroom is a good size but it's nowhere near either of the biggest bedrooms. Combining bedrooms 1 & 4 would give you the biggest space for a principal suite including ensuite and dressing room. It all depends on your budget and which rooms receive the best light.
...See More
PRO
User
10 years ago
last modified: 10 years ago
Having done a few of these in my time, i can say, unless you want to go to major construction, the short answer is, 'No'. Unfortunately the way your bathroom is upstairs is on the 'wrong' side of the house to provide a good alternative. You will probably find that your neighbours house is easier changed as their bathroom comes up on the right side. Whatever you do, you will end up making the second bedroom much smaller. You have to take down the chimney stacks whatever you do, and unless you are able to put a solid roof on the conservatory, build over the top to create more space, you would be ending up with 3 small bedrooms, or two small bedrooms, a mediocre bedroom and a narrow bathroom. Plans 1 & 2 show these examples. Plan 3 is the only logical solution to improving the house that would be worth doing as it would add value and not diminish the spaces too much that you already have. It creates an upstairs worth having, a lovely sized master bedroom and a good size family bathroom.
