Layout ideas please for extension kitchen diner

4 years ago

last modified: 4 years ago

Hi,

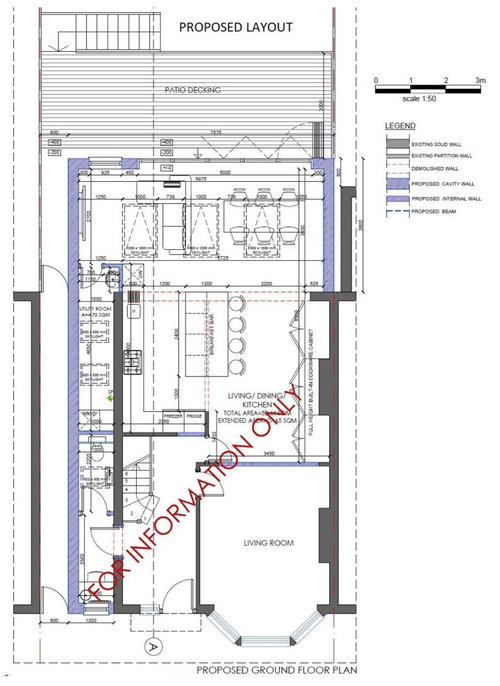

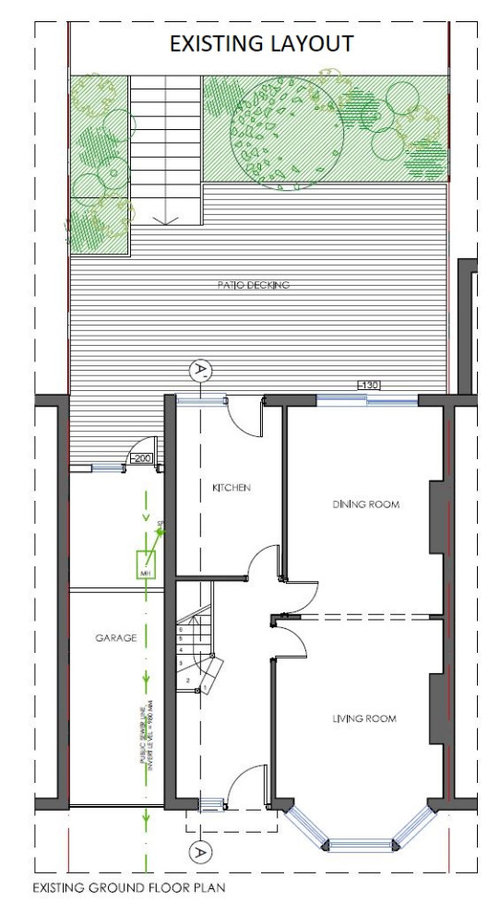

We're in the process of finalising architects drawings for a back extension in our 1930s semi which currently has an old shed/garage attached to the side, which will be demolished.

Our 'brief' is to create

an open plan kitchen diner with island
TV/sofa space in the extension
separate utility area
downstairs toilet
small office space
side passageway for direct access to the garden from front to back
A separate living room at the front of the house as we don't want the whole of the downstairs to be open plan.

We have been advised that to keep structural costs down we should retain as much of the existing external wall as possible, hence the very narrow utility space in the proposed plans.

I would be very grateful for your feedback about our proposed plans and if anyone has any ideas about how we could use the space differently/better.

Many thanks in advance!

Sort by:Oldest

Comments (4)

PRO
Londonfatcat
4 years ago
Hi Tilly,

I wanted to draw attention to the living room sofa's vicinity to the bi-fold. You'll be doing a side-shuffle to access the handle to open it up.

An additional comment is the side access to your utility space, from the seating area. It is a design and navigational flow detail that may seem superfluous but if you have the space in the utility room to revise this, I would suggest to have access through the kitchen i.e a full length kitchen cabinet that opens to reveal access to the utility room.

All the best on your project.

Faten from londonfatcat.com
Tilly Webb thanked Londonfatcat
Tilly Webb
Original Author
4 years ago
Hi, thanks so much for your comments. I totally take your point about the bifold doors and it's been suggested we should go for sliding doors instead, which would work better in the space. I also take your point about access to the utility area from the kitchen which would be ideal but I'm already a bit concerned that we won't have a lot of worktop space so I'm reluctant to use up any of the space for a door to the utility, but will definitely think about it. Thanks so much!
Related Discussions
Side return extension kitchen/diner layout
Q
Comments (8)
Hi- I could have written this post myself! We too are having a partial side return resulting in an L shape layout. Our overall length is a bit shorter (5 vs your 6), but with the side return ours will be wider at 3.1m and 6m wide. Getting the layout right is so hard! We’ve decided to keep our formal dining room as is, and the kitchen in its existing galley type shape. We will have a peninsula come out at the top end to form bar seating for the kids/guests. The “old fence side” of the new area will have a toilet room and a laundry cupboard for the washer and dryer. I’m having the kitchen designed so that anything a guest/kid/non cook might need is towards the front, eg fridge, snack cupboard, window fridge, cutlery, trash receptacle etc. I am hoping that keeps everyone out of the cook’s zone, aka my way! I want to make the peninsula wide enough so it can feel more like a kitchen table, and be a comfortable spot for the kid’s homework too.
...See More
Kitchen/diner extension layouts
Q
Comments (10)
Thanks for your input. I agree re the kitchen layout in the first option but we are just struggling with that wall! Would you build essentially all the way up to the boundary? Or would you leave a slim gap to be able to clear weeds between boundary and diagonal wall? The roof is unfortunately a bit complicated as there is a shared roof over our existing dining room and the neighbours dining room - the plan was to tie in this existing roof to a new crown roof on our side so we don't impact the neighbours. If we went for a diagonal wall and therefore a non 90 degree corner we would probably swap to a flat roof instead of crown to keep costs lower.
...See More
Kitchen / Diner Layout ideas please!
Q
Comments (32)
Hi!, as a furniture/kitchen designer for over 30 years I try to come to the clients with a complete open mind. I ask the question that I need to understand how you live and want to live 10 years from now 15 years from now and so on. It's vital to open the time conversations as often families consider that as it is, is how we plan and build. When in reality we all age together and we all keep moving, of we are lucky to be healthy and able. So! Starting from that prospective I'll build a picture based on first the practicals.... How many people living in the house ? Age profile? Special food needs? How do you like to cook Range or oven & hob? 6.Have you a preference of sinks? ie Belfast sink or undermounted sink? Have you a thought on boiling water taps? What's your opinion on worktops? Quartz, Granite, wood, Corian, laminate? After that it down to the nicer things. What colours, textures and layout work best. After that it's lighting and that's a life if its own.
...See More
Help with extension kitchen diner design/layout, utility, toilet...
Q
Comments (16)
I think on our drawing the island is much too big. We had the idea of integrated dining at the end of the island but I think that is going to be too limiting so would like a separate dining table and thinner island. I agree with the other comments who said anything much more than 1.2 deep is wasted space! I love the idea of the kitchen on the angled wall and the little seating area on the nook bit between the steel nib and the doors. Yes this is the only access to the garden. The utility and loo will be behind a pocket door so contain noise etc away from the dining area and I like the dining by the fireplace. I'm going to get a few kitchen people in but wanted to be armed with some ideas and options and everyone's been so helpful!
...See More
Jonathan
4 years ago

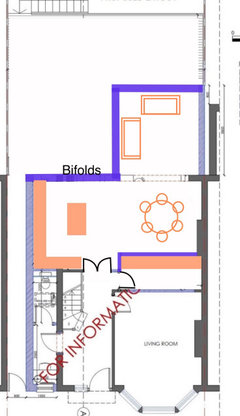

Alternative
Tilly Webb thanked Jonathan
Tilly Webb
Original Author
4 years ago
Thanks Jonathan, this is definitely something to think about.
