Help with structural engineer calculations
HU-698544731
last year

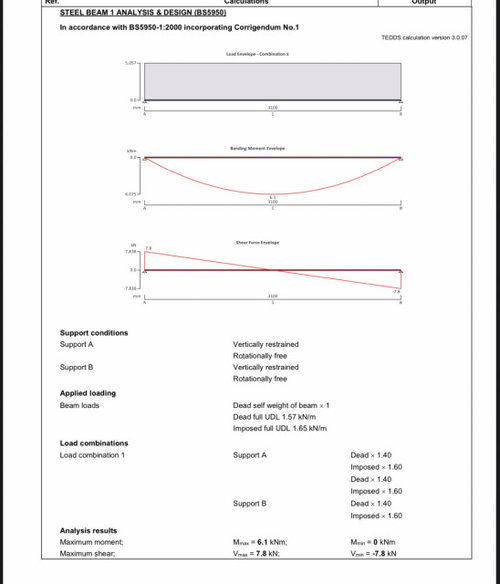

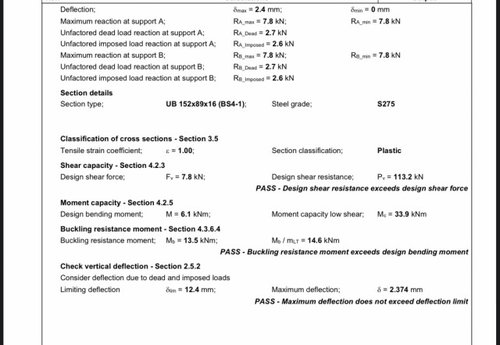

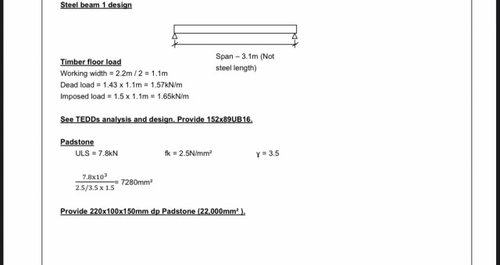

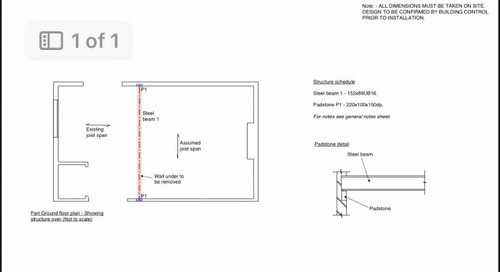

Hi there, ive had a structural engineer prepare drawings to remove a loan bearing wall between kitchen and dining room. the size of the beam hasnt been included. the builder i spoke to said i needed a ”to scale“ drawing and this would show the size of the steel required including length. the SE said he doesnt do this and its for the builder?! im supposed to be getting the steel but i have no idea what size! please help!
